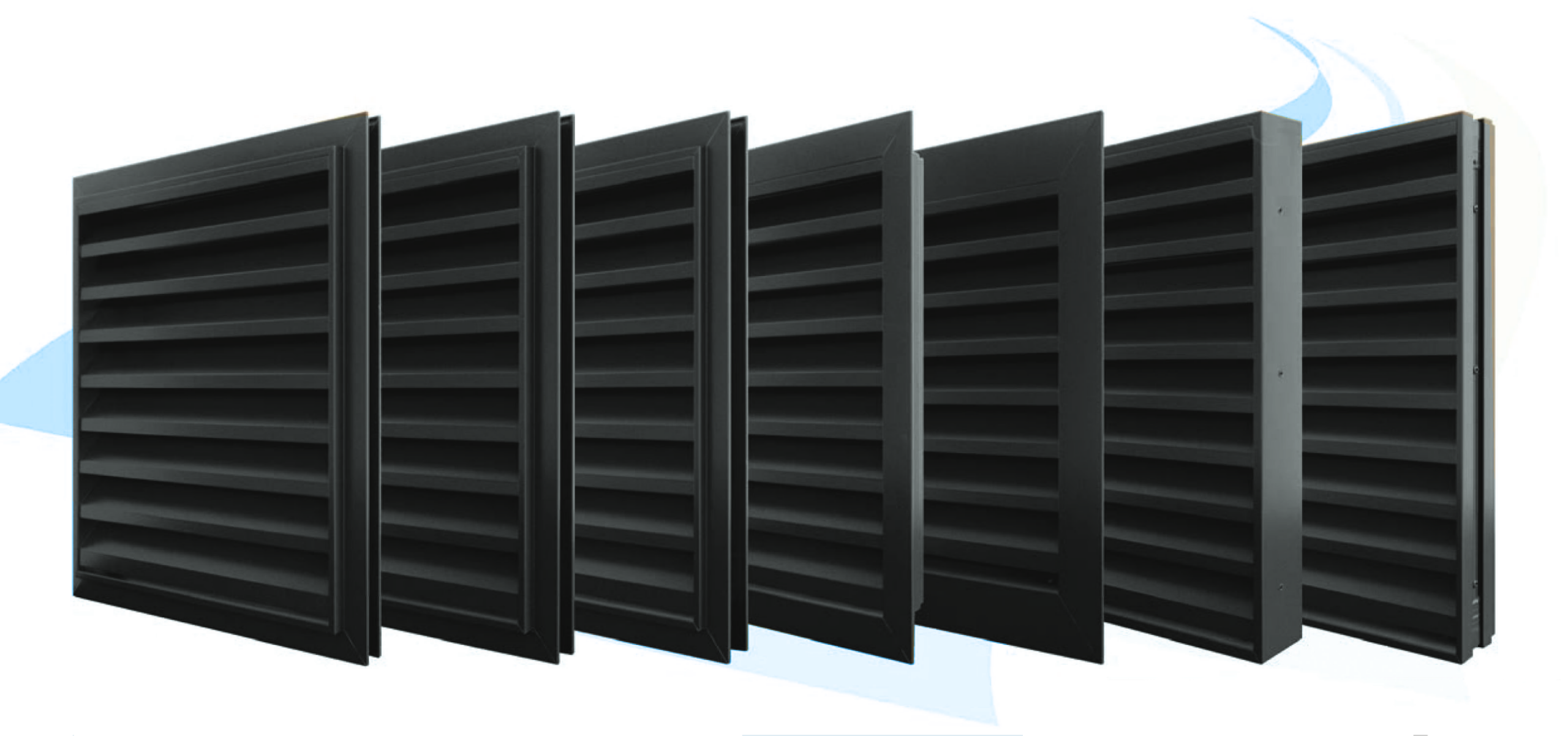

AVS50 Aluminium Louvre
The AVS50 aluminium louvre system is designed for projects where increased airflow and ventilation performance are the primary requirement. Featuring a deeper blade profile, the system delivers enhanced air movement while maintaining a clean and consistent architectural appearance.
Manufactured to project-specific requirements, the AVS50 is suitable for a range of commercial and industrial applications including plant enclosures, façade ventilation and screening systems. Available in a variety of finishes and bespoke sizing options, the system can be tailored to suit wider architectural and ventilation requirements.
Click the links below to add ASV50 Aluminium Louvre to your NBS specification.
ASV50 Aluminium Louvre
Materials
- Manufactured With Extruded Aluminium Alloy to 6063 T6 (UK Sourced)
- Mechanically Jointed Corners
- Profile Thickness 1.5 mm
Performance
- Refer to BSRIA performance evaluation data on pages 2-5
- Independently Tested to BS 6180:2011 - Refer to Performance data on pages 6 and 7
- 50% Free area based on louvre core (excludes top and bottom blade arrangements and any intervening blade carrying profiles)
- Airflow performance Mean Ce 0.272 with Flyscreen / Ce0.257 with Birdguard
Options
- 24, 28 and 32 mm Glazed-In Outer Frames
- Box Frame and Flanged Outer Frame
- Hybrid Options
- Flyscreen (Stainless Steel or External Grade Black Fibreglass) or Birdguard
- Water Drainage Profile
- Enhanced Security Option
- Blanking Panels (Thermal or Standard)
Dimensions
- 50 mm Blade Pitch
- 60 mm Depth o/all
- Glazing Rebate Height 30 mm
