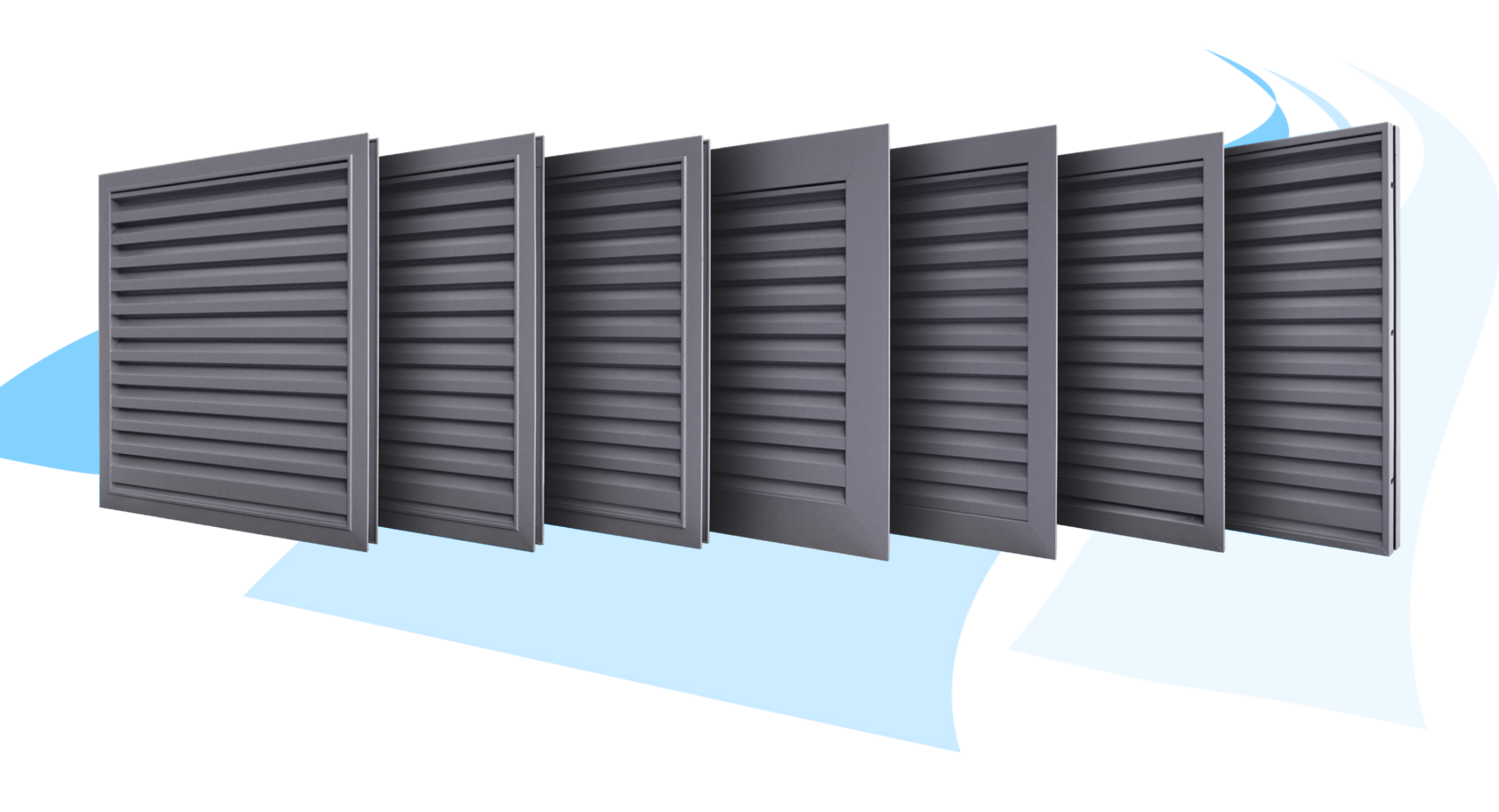

AVS32 Aluminium Louvre
The AVS32 aluminium louvre system is designed to provide reliable airflow and ventilation performance across a wide range of façade applications. Suitable for both new build and refurbishment projects, the system offers a clean architectural appearance while supporting effective air intake and exhaust ventilation.
Manufactured from high-quality aluminium, the AVS32 system is ideal for integration within rainscreen cladding and external wall constructions. Its blade profile is engineered to balance airflow performance with weather protection, making it suitable for commercial, residential and plant screening applications.
Click the links below to add AVS32 Aluminium Louvre to your NBS specification.
ASV32 Aluminium Louvre
Performance
- Refer to BSRIA performance evaluation data on pages 2, 3 & 4
- 50% Free area based on louvre core (excludes top and bottom blade arrangements and any intervening blade carrying profiles)
- Mean Ce and CD Factors refer to performance data Dimensions
Dimensions
- 32 mm Blade Pitch
- Product depth 38 mm o/all
- Glazed-in outer frames to suit as 24, 28 and 32 mm standard (alternative glazing thickness' available upon request)
- Glazing rebate height 24 mm
Options
- 24 or 28 and 32 mm Glazed-In Outer Frames as standard
- 3 Flanged Outer Frame Options
- Box Outer Frame
- Water Drainage Profile (recommended for exposed locations or where minimal water ingress is permissible)
- Fly screen - fitted with Stainless Steel as standard with alternative options available on request
- Birdguard
- Enhanced Security Option
- Blanking Panels - thermal (composite) or simple sheet blanking
Materials
- Extruded Aluminium alloy profiles to 6063 T6 • Profile thickness 1.5 mm
- Mechanically jointed with corner chevrons Performance
