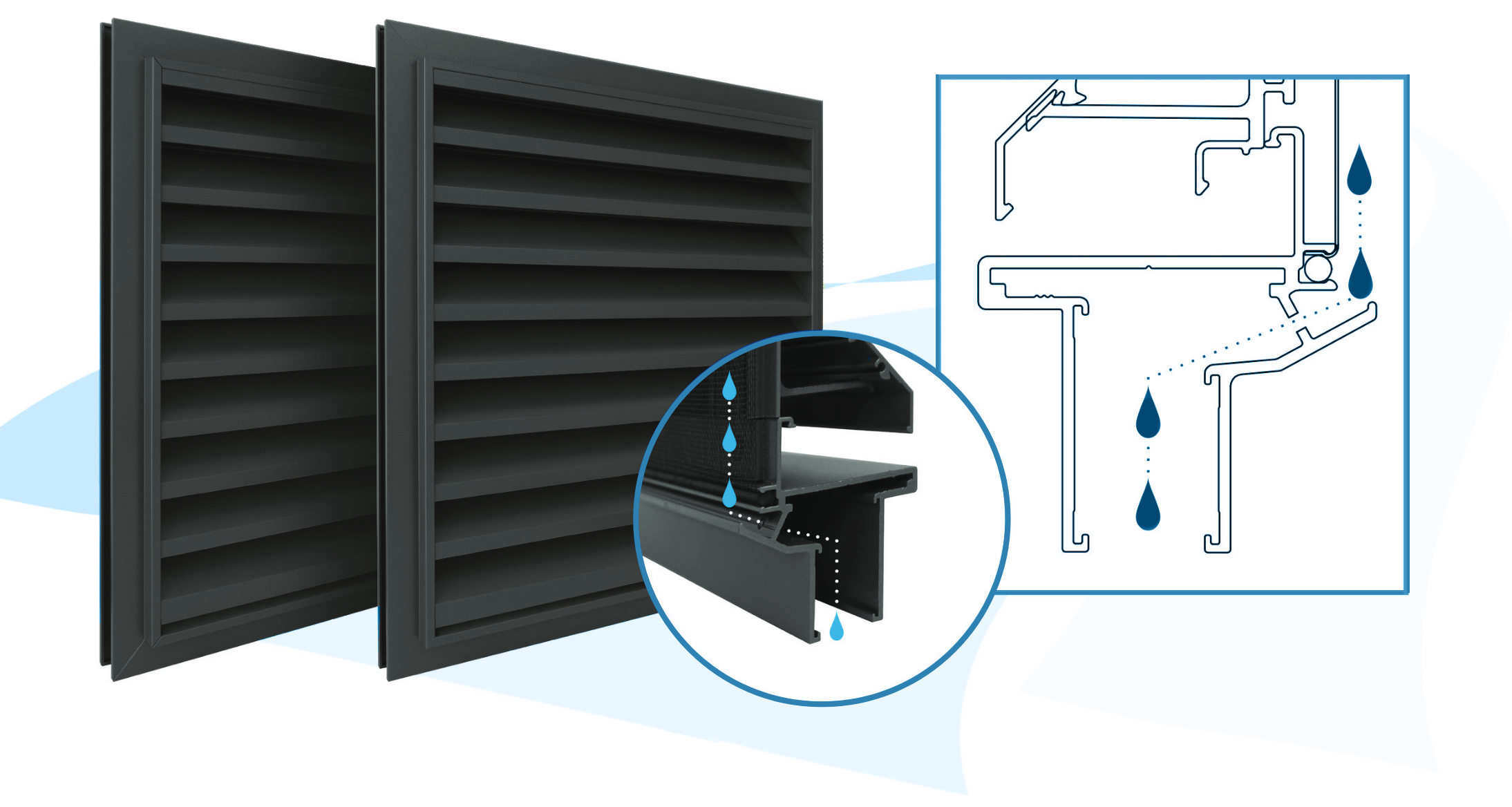

AVS50DR Drainable Louvre
The AVS50 aluminium louvre system is designed for projects where increased airflow and ventilation performance are the primary requirement. Featuring a deeper blade profile, the system delivers enhanced air movement while maintaining a clean and consistent architectural appearance.

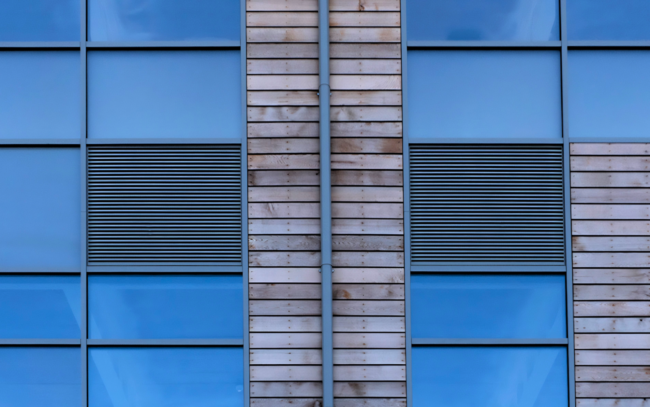

Manufactured to project-specific requirements, the AVS50 is suitable for a range of commercial and industrial applications including plant enclosures, façade ventilation and screening systems. Available in a variety of finishes and bespoke sizing options, the system can be tailored to suit wider architectural and ventilation requirements.
Click the links below to add AVS50DR Drainable Louvre to your NBS specification.
ASV32 Aluminium Louvre
Materials
- Extruded Aluminium alloy profiles to 6063 T6
- Profile thickness 1.5 mm
- Mechanically jointed with Zintec corner chevrons
Performance
- Class 'A' weather rating with Fibreglass Insect Mesh
- Class 'B' weather rating with Stainless Steel Insect Mesh
- 50% Free area based on louvre core (excludes top and bottom blade arrangements and any intervening blade carrying profiles)
- Mean Ce Factor 0.202 (Class 3)
Options
- 24 or 28 mm Glazed-In Outer Frames as standard
- Flyscreen Options include External Grade Fibreglass as standard or Stainless Steel Enhanced Security Option
- Blanking Panels - thermal (composite) or simple sheet blanking
- Birdguard
Dimensions
- 32 mm Blade Pitch
- Product depth 66 mm o/all
- Glazed-in outer frames to suit 24 & 28 mm as standard
- Glazing rebate height 29 mm
